The color PiPc is a state-of-the-art picture in
a picture device designed specially for the security industry.
Automatic inset picture enabling or swapping the pictures full-screen can be
initiated by an alarm input. Simple front panel
push buttons can also turn on or off the
inset picture, swap pictures, and even freeze the picture which
can be positioned anywhere |
|
|
DTT
- Time/Date/Titler
The DTT is the solution for inserting time,
date, and camera information onto a VCR, monitor, or video
printer. The ultra small unit has a two-line display and with
a low power consumption design making it perfect for mobile or covert applications.
|
 |

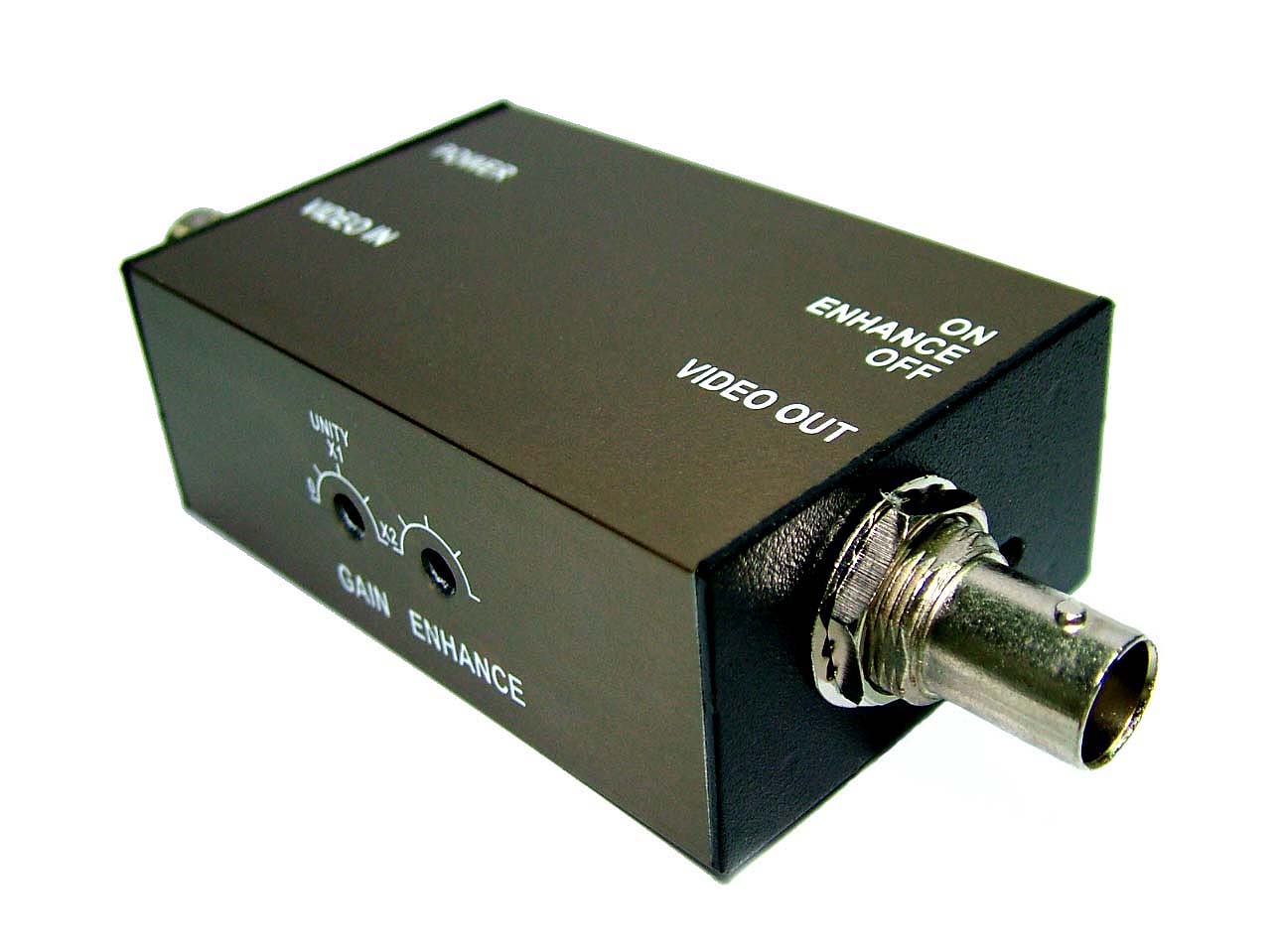

VECA
The VECA is an active inline transmission device mounted on
the camera to compensate for video degradation due to long BNC
cables. There are two controls on the VECA, one for Enhancing
Color and the other for Gain. Operates on 12VDC.
|
Manual
| |
 |

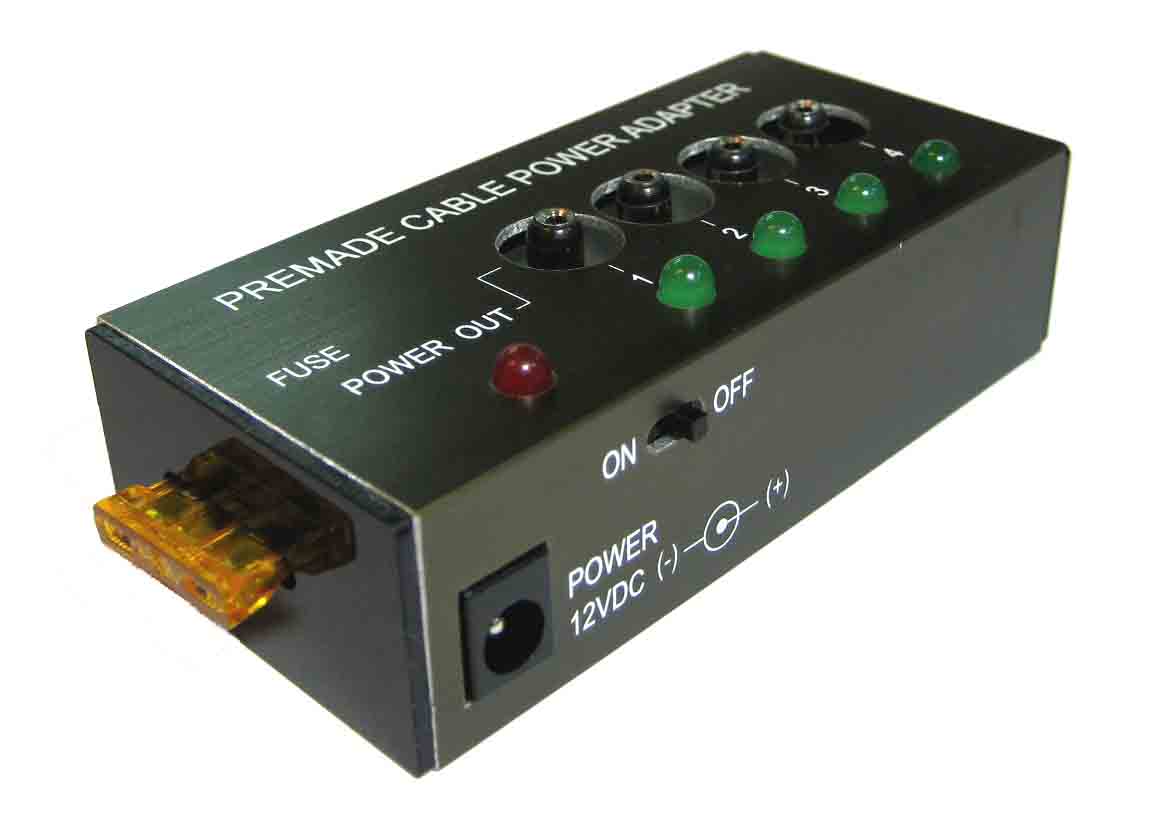

The Premade Cable Adapter is designed to use off the shelf premade cables to install CCTV equipment and connect them to a single 12VDC wall adapter without any wire cutting or splicing. This adapter has an individual power LED and short circuit protection for each camera. A master fused power switch and power LED for all four cameras.
|
Cutsheet
| |
|
|
VDA401
The VDA401 is a high quality 1-input looping to
4-output video/audio distribution amplifier. All outputs are short
circuit protected and each can drive a 75 ohm terminated
load.
|
Manual
| |
|
|
TDCT-Pro
The TDCT-Pro is the powerful time, date,
character, and titler which has all the features of existing TDCT
products (TDCT-T, mTDCT, TDCT-60, TDCT-Military, MTDCT, STDCT,
mSTDCT, and mSVTDCT). Following is the features of TDCT-Pro.
|
Manual | | Software download | |
Software manual |
|
|
|

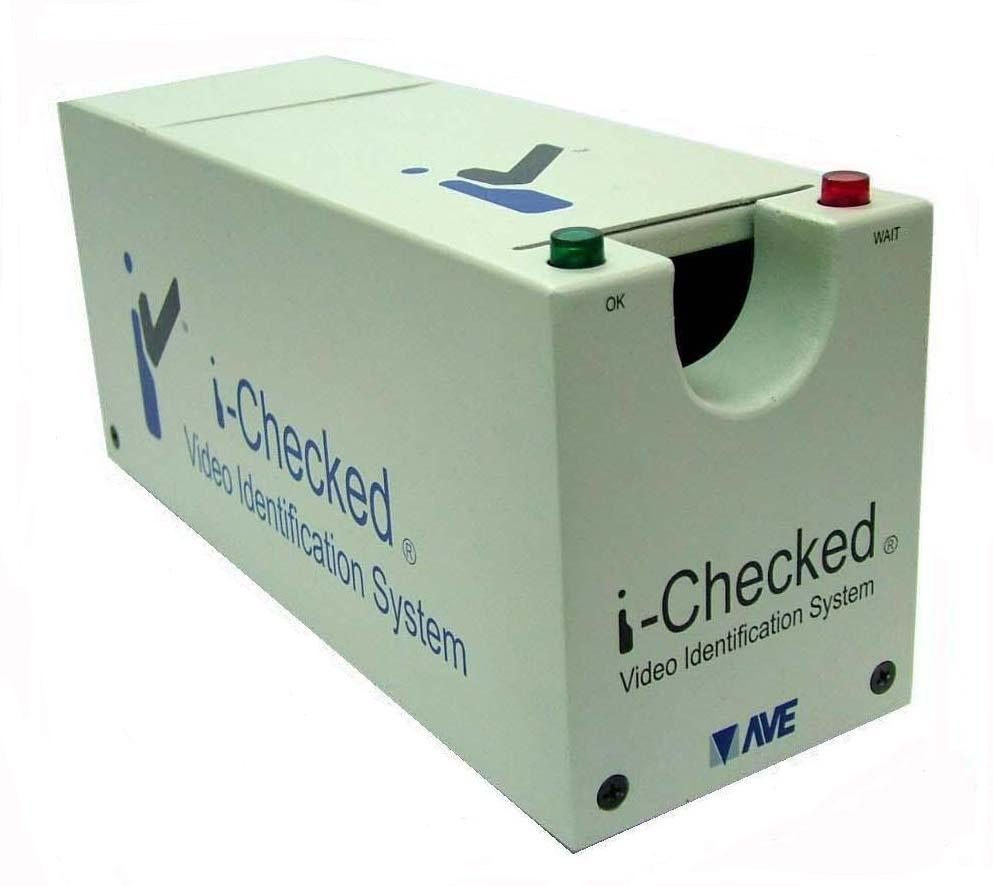

The i-Checked is the ideal
product to help protect any business that sells or
buys products where checking an I.D.(Driver's License) is
required.In most places, selling alcohol, tobacco products, fire arms, and
controlled substances to minors and other unauthorized people can result in
heavy fines and penalties. |
|
|

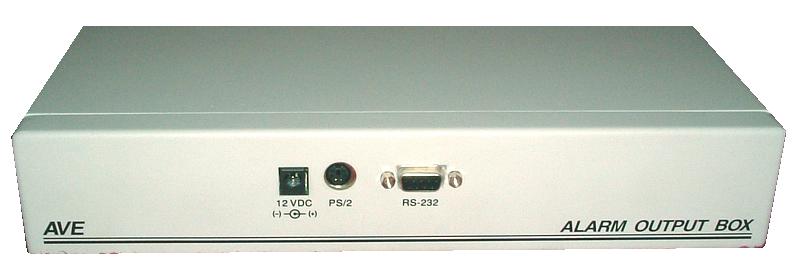

Alarm Output / Alarm I/O
The Alarm Output provides
individual alarm outputs from the MTI Multiplexer or any RS-232 or
RS-485 source. The Alarm I/O provides individual alarm outputs from
the MTI Multiplexer or any RS-232 source.and inputs from an external
source via the Optically Isolated inputs. Address selectable for up to
256 devices on one serial port. The Alarm Box has a master
alarm output that is active when any of the other channels are
active and has three 12-VDC outputs, one 5-VDC output, and an LED
status.
|
Manual
| |
|
|
RS-232 to RS-485 Adapter
This devices converts RS-232 to either RS-422
four wire connection or RS-485 two wire connection. Flow control for
RS-485 via RTS and fully jumper selectable for DTR or DSR
configurations and pin swapping. This device makes a standardCOM
Port compatible
with the Regcom, Networker, Vnetworker, or DSVMD software
application.
|
Manual
| |
| |
USB to RS-232/RS-485 Adapter
This device converts USB 1.0 -
2.0 to RS-232 or RS-422 (Single Direction) or RS-485 bi-directional
half duplex. Include driver software uses the RTS signal for RS-232
flow control. This device makes a USB port compatible with the
Regcom, Networker, Vnetworker, or DSVMD software
application.
| Manual
| |
|
|

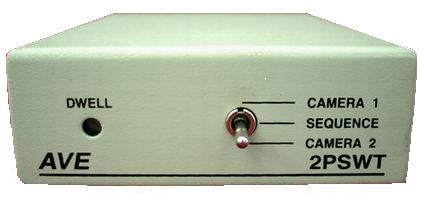

2PSWT (2-Position Switcher)
The 2PSWT is a 2 position sequencing, homing
switcher. The front panel toggle switch
allows for automatic sequencing, or homing of the 2
video inputs. Sequencing is controlled by a front
panel recessed dwell pot. This pot is recessed to
eliminate accidental adjustment. The dwell adjustment varies from approximately .2
second to 60 seconds.
|
Manual
| |
|
|
4PSWT (4-Position Switcher)
The 4PSWT is a 4-position sequencing, alarming, bypassing, and
homing switcher. The front panel toggle switch allows
for automatic sequencing, homing, and bypassing of the 4
video inputs with the dwell adjustment variable from approximately 0.2
second to 60 seconds.
|
Manual
| |
|
|
4PSWT-RS (RS-232 Controlled Switcher)
The
4PSWT-RS is a 4-position sequencing, alarming, bypassing, and homing
switcher. The front panel toggle switch allows for automatic
sequencing, homing, and bypassing of the 4 video inputs with the
dwell adjustment variable from approximately 0.2 second to 60
seconds along with full control via the rear RS-232 serial port.
|
Manual
| |
|
|

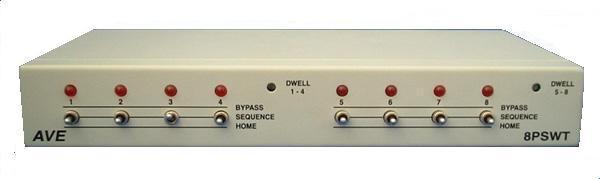

8PSWT (8-Position Switcher)
The 8PSWT is an 8 position sequencing,
alarming, bypassing, and homing switcher. The front panel toggle
switch allows
for automatic sequencing, homing, and by-passing of the 8
video inputs. Sequencing is controlled by a front
panel recessed dwell pot. This pot is recessed to
eliminate accidental adjustment. The dwell adjustment varies from approximately .2
second to 60 seconds.
|
Manual
| |
|
|

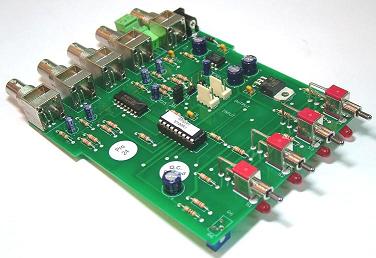

4PSWT(RS)-PCB

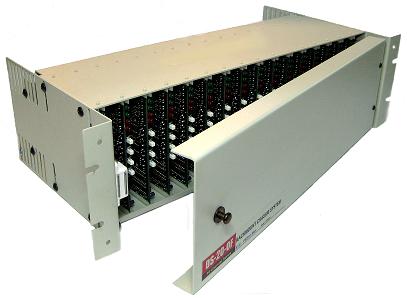

Cascadable Nx1 / DS-20-OF 4PSWT Rack
Link multiple PCBs
together to achieve any size video switcher you desire. Currently
supported to 32x1 but can be expanded to a maximum of 256x1 cameras.
The DS-20-OF rack will support up to 16 cards giving a maximum of a
64x1 video switcher. Can be used with the 4PSWT which has one alarm
input per each bank of 4 cameras or the 4PSWT-RS which accommodates
RS-232 commands in addition to manual switcher functions.
|
Manual
| |
|
|
Multi Screen
16x3 Mini Matrix Duplex Multiplexers
9 and 16-Channel MultiDisplay
Duplex Multiplexers with One Digital and 2 Analog Monitor Outputs.
Integrate16X3 Mini Matrix Switching and multiscreen display gives
this device versatility for non multiplexer applications. Optional
internal VMD for real time looking display.
| MS-9
| | MS-16 | | MTIUDL Software |
|
|
|
AVE
MULTIPLEXERS - QM-4 and QM-8
The
QM line are high resolution simplex monochrome multiplexers. The
superior image quality exceeds 580 lines resolution with 256 levels
of gray scale to give uncompromising B&W image re-production.
The RS-232 remote control and camera switcher pulse make the QM line
ideal for remote sites.
|
|
|

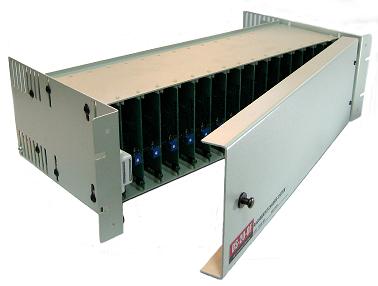

DS-20-OF DTT, DS-20-OF VDA401
Using the PCB only version you can add 16 cards in this convenient Standard 19” 4 U Rack Frame. Includes rear daisy chain wiring for 12VDC power supply with common screw terminal connector and magnetic latching front door to access programming buttons.
|
