American Video Equipment’s Video Serial Interface for Automatic Teller Machines connects between the modem and the ATM or to the External Camera Controller port on the ATM. The interface monitors the data stream from the ATM and inserts printer or display data from the receipt into the video picture.

The VSSI Pro and the Triport ATM-2CH cable handles SDLC, Sync, Async, and Bisync formats for all ATM Hosts.

Available ATM Interfaces Interbold, MDS, Diebold, Fujitzu, Hitachi, NCR, Mosler, Omron, Siemens, Unisys/Burroughs and IBM and all others running emulation modes of the above vendors.

CCIR/PALCompatible!
The VSSI Pro and Triport ATM-2CH Cable

Download the VSSI-PRO Operation Manual in PDF Format

View the Cutsheet

The VSSI+S interface is based on the latest version software. This allows extensive programming features for on-screen display formating, alarming functions and printer output control.

Advanced Features:

  • Time/Date On-screen On/OffTime/Date Genlock to Host Computer
  • Time/Date Stamp on Exception output
  • 32K Battery Backed SRAM
    • Improved buffer for new fast networks
    • Exception buffering and downloading/printing
  • Auto Poll Select Address Setup
  • Auto Network Configure SDLC or Bisync
  • Printer Output
  • 2 Programmable Alarm Outputs
  • Card Reader Contact Input
  • Programmable triggered text provides for serial output for the control of VCR, multiplexor, matrix, PTZ, access system, etc.
  • 24 Exceptions
    • Remove unwanted data from screen
    • Alarm certain types of transactions
    • Send certain transactions to printer
  • Plus all the features of the VSI+ Version 11.00 release

Typical AVE ATM Interface Display

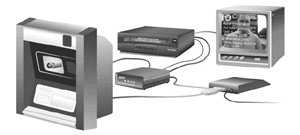

Connection the VSSI-Pro
